Karten-Zuführung
Reibungszuführer vereinzeln Karten, Beilagen und kleine Bögen mit bis zu 800 Bögen/min — das Herz von Karten- und Einlege-Linien.

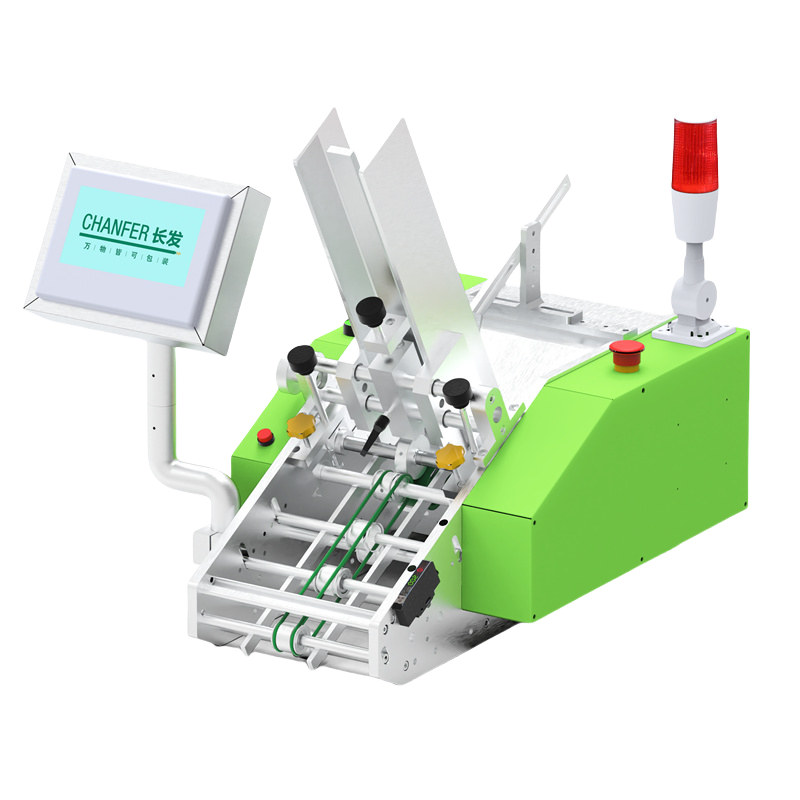

FKJ-100SL Servo Card Feeder
Applications: cards, red envelopes, greeting cards, instruction sheets. Servo-motor driven, PLC + touchscreen HMI.
Anwendungen & Leistung
- Geschwindigkeit
- 500 pcs/min (CR80)
- Dicke
- 0.1–3 mm
- Größe
- 45–120 × 40–100 mm (customizable)
- Leistung
- 450 W
- Spannung
- 220 V
- Abmessungen
- 612 × 400 × 597 mm
- Gewicht
- ≈ 25 kg

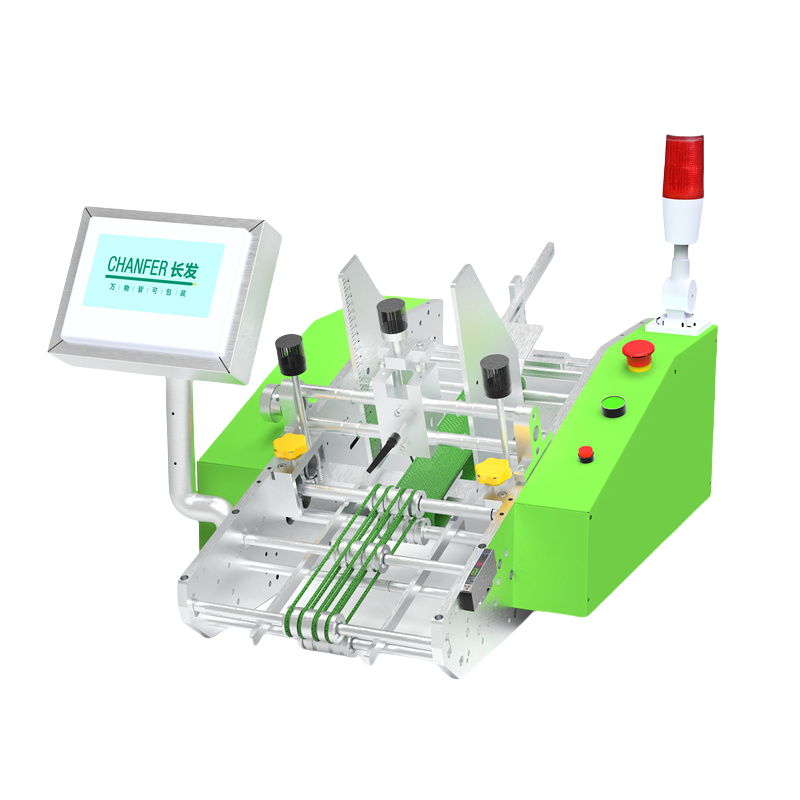

FKJ-200E Servo Card Feeder
Applications: cards, red envelopes, greeting cards, instruction sheets. Servo-motor driven, PLC + touchscreen HMI.
Anwendungen & Leistung
- Geschwindigkeit
- 500 pcs/min
- Dicke
- 0.1–3 mm
- Größe
- 50–300 × 61–200 mm (customizable)
- Leistung
- 500 W
- Spannung
- 220 V
- Abmessungen
- 711 × 485 × 520 mm
- Gewicht
- ≈ 30 kg

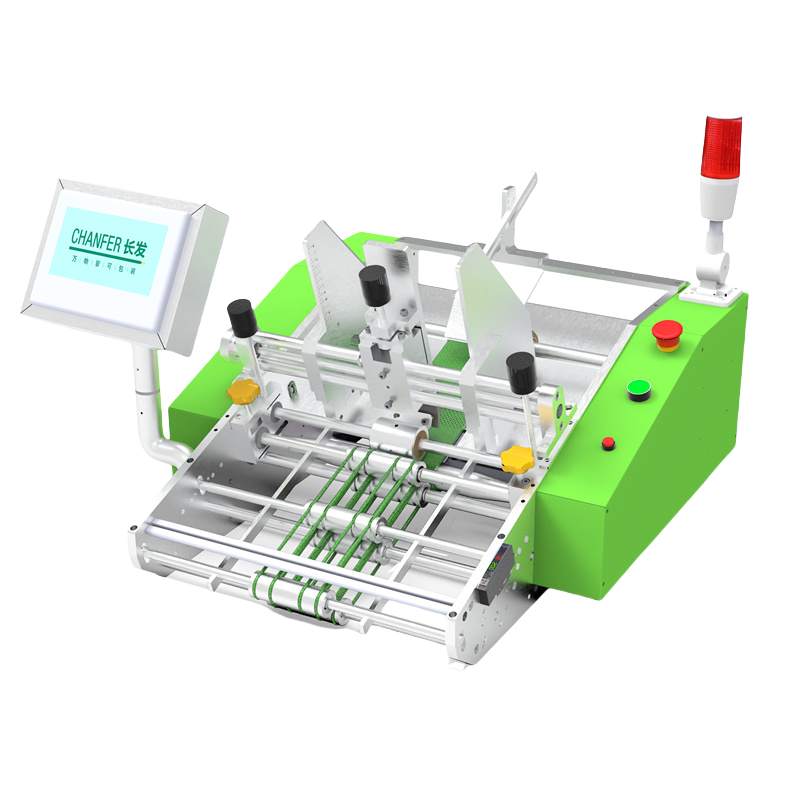

FKJ-300E Servo Card Feeder
Applications: cards, red envelopes, greeting cards, instruction sheets. Servo-motor driven, PLC + touchscreen HMI.
Anwendungen & Leistung
- Geschwindigkeit
- 500 pcs/min (CR80)
- Dicke
- 0.1–3 mm
- Größe
- 50–300 × 110–300 mm (customizable)
- Leistung
- 450 W
- Spannung
- 220 V
- Abmessungen
- 620 × 670 × 700 mm
- Gewicht
- ≈ 35 kg
FKJ-420E Servo Card Feeder
Applications: cards, red envelopes, greeting cards, instruction sheets. Servo-motor driven, PLC + touchscreen HMI.
Anwendungen & Leistung
- Geschwindigkeit
- 0–200 pcs/min
- Dicke
- 0.1–3 mm
- Größe
- 50–300 × 190–420 mm (customizable)
- Leistung
- 450 W
- Spannung
- 110/220 V
- Abmessungen
- 740 × 670 × 700 mm
- Gewicht
- ≈ 40 kg

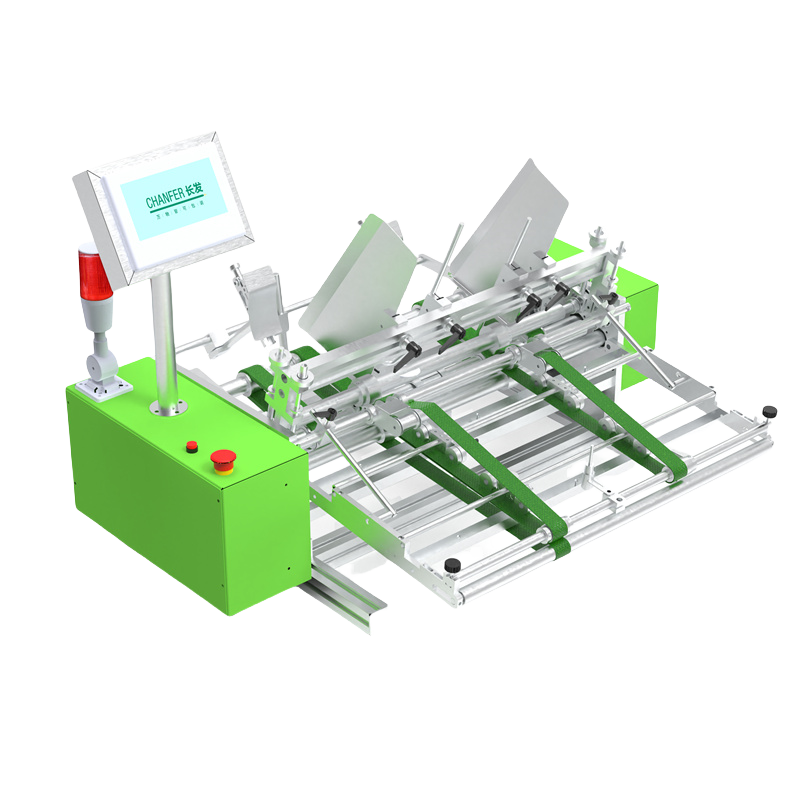

FKJ-600C Servo Card Feeder
Applications: cards, red envelopes, greeting cards, instruction sheets. Servo-motor driven, PLC + touchscreen HMI.
Anwendungen & Leistung
- Geschwindigkeit
- 200 pcs/min
- Dicke
- 1–3 mm
- Größe
- 60–500 × 200–600 mm (customizable)
- Leistung
- 750 W
- Spannung
- 220 V
- Abmessungen
- 920 × 1026 × 708 mm
- Gewicht
- ≈ 65 kg

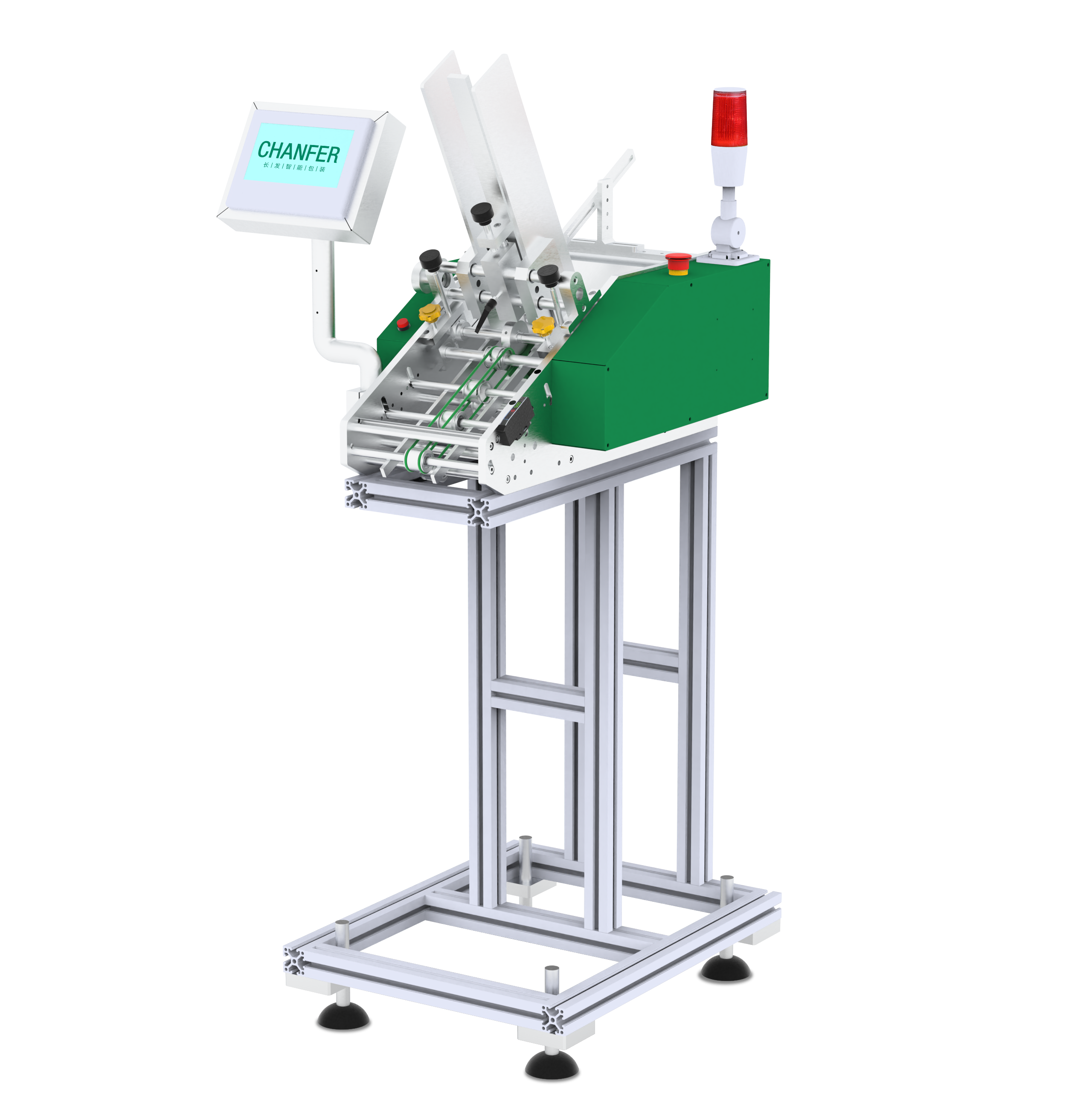

Fully Automatic Counting Card Feeder
Applications: cards, red envelopes, greeting cards, instruction sheets. Servo-motor driven, PLC + touchscreen HMI, stand-mounted.
Anwendungen & Leistung
- Geschwindigkeit
- 500 pcs/min (CR80)
- Dicke
- 0.01–3 mm
- Größe
- 45–120 × 40–100 mm (customizable)
- Leistung
- 450 W
- Spannung
- 220 V
- Abmessungen
- 612 × 400 × 597 mm
- Gewicht
- ≈ 25 kg
Frequently Asked Questions
Q.What is a card feeder?
A card feeder (also called a friction feeder) is an automatic device that separates and feeds individual cards, leaflets, and small sheets from a stack into a packaging line at high speed, replacing manual placement.
Q.What card types can CHANFER card feeders handle?
CR80 cards, game cards, gift cards, ID cards, trading cards, and instruction sheets from 0.1 mm to 3 mm, including coated and laminated stock.
Q.How fast are CHANFER card feeders?
Servo-driven models reach up to 800 sheets/min for CR80 cards, with 500 sheets/min as a typical working rate depending on card size and line configuration.
Q.Do card feeders detect missing or double cards?
Yes. Photoelectric sensors provide missing-card, double-feed, and wrong-position detection with automatic alarm and line stop to protect every pack.
Q.Can card feeders integrate with flow wrappers?
Yes. CHANFER feeders connect to flow wrappers, cartoners, shrink wrappers, and conveyors via PLC and photoelectric signals for seamless hand-off.
